Wave - Balcony Railing
Flat metal parts, assembled into a wave

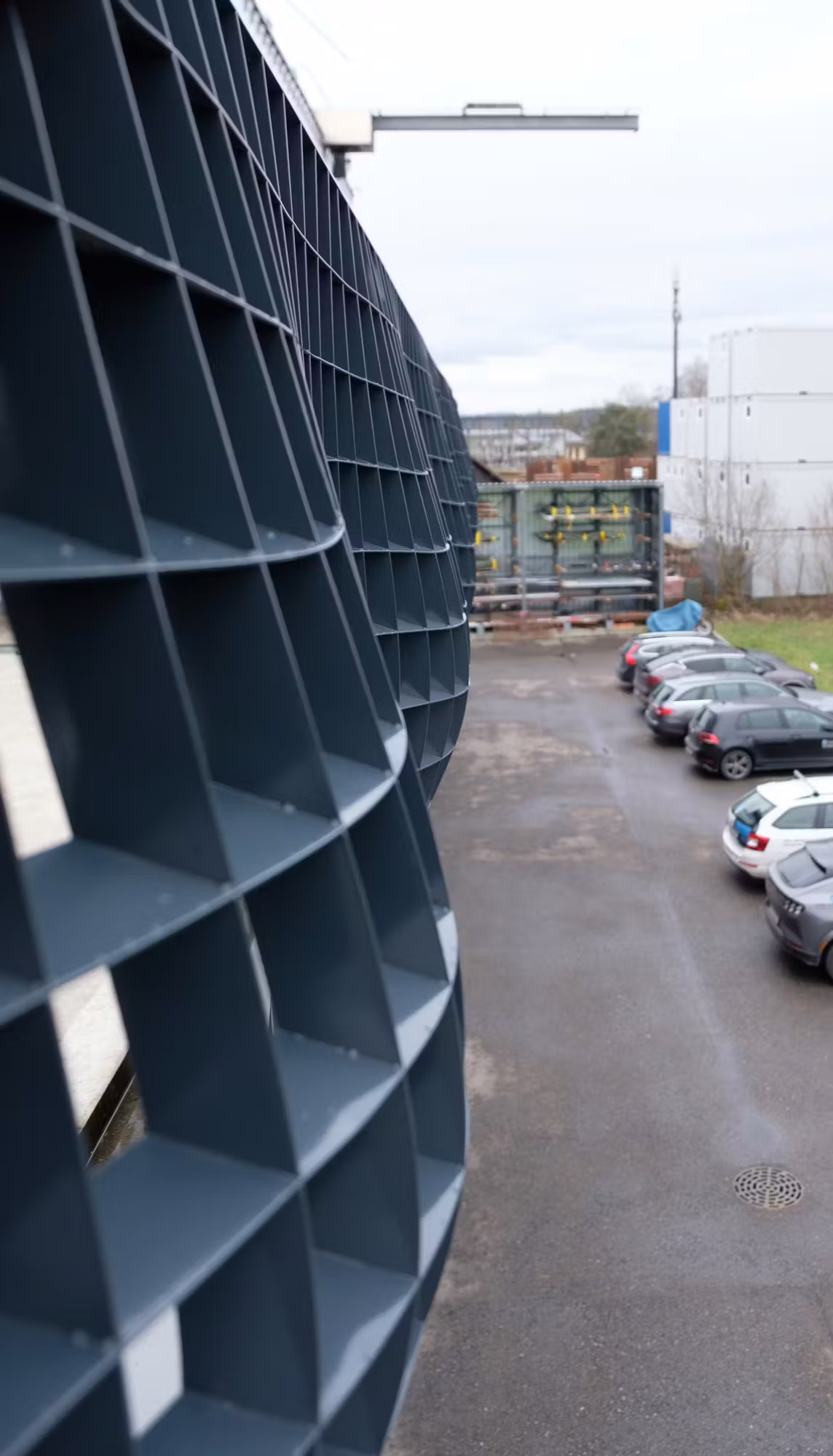

Wave is a balcony railing made from flat metal parts that only become spatially curved during assembly.
Cutting data, part labeling, and assembly information all derive directly from the wave geometry.
Design, fabrication, and installation share one data path. Nothing gets re-entered between steps.
Digital Production Data

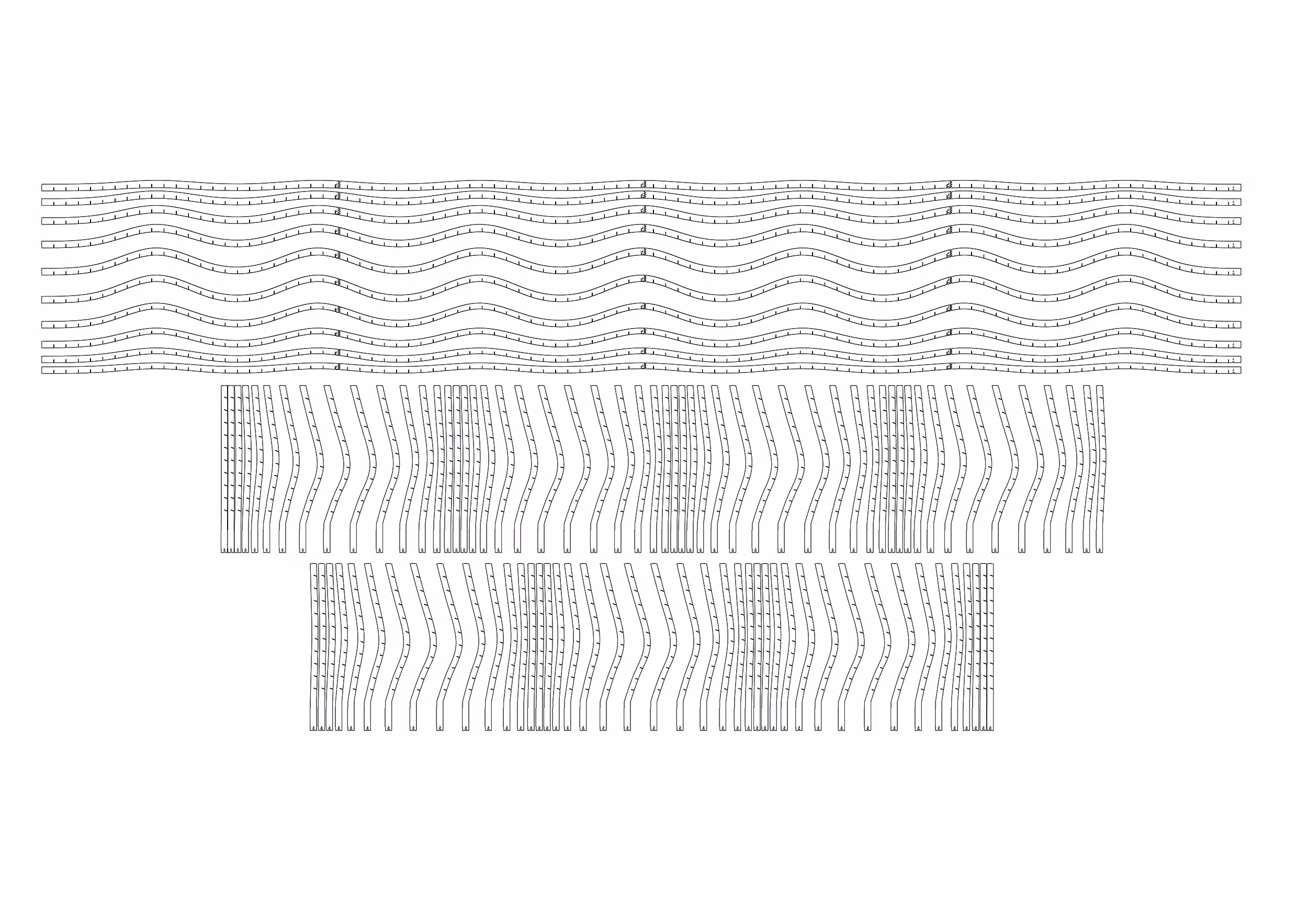

The model takes the wave geometry and produces every cut file for the laser. Each flat part carries a unique label with its position number, dimensions, and install info. The data goes straight to Carl Meier Sohn AG, with no manual conversion in between.
Scope
The digital workflow for the balcony railing: from shape logic through to cut files and assembly instructions.
Technologies
Laser CuttingParametric Design
Partners
Carl Meier Sohn AG
Production & Assembly
